Dimplex DLW Series 70-Inch 3200W 240V Long Wave Infrared Electric Heater

Toasty Dinners. Cool Cocktails. Outdoor Soirées Under The Stars.

If you are looking for a powerful and easy-to-use electric heater, look no further than the Dimplex DLW Series 70″ Radiant Indoor/Outdoor Infrared Electric Heater. The DLW electric heater produces radiant heat, which heats objects and people rather than the air. The DLW heater must be installed in such a way that objects and people are within the direct heat area of the heater.

Position the heater directly above the area to be heated, with an ideal mounting height of 96″ to 105″. For ceiling heights taller than 105″, installation with extension poles (sold separately) is recommended. In optimal conditions, these units can heat up to 60 sq. ft. in an outdoor enclosed area or up to 78 sq. ft. indoors.

Please note that the coverage area will vary depending on various conditions such as wind, temperature, and mounting height. See the relevant section for each installation for more details.

The Dimplex DLW Series Radiant Heater can be Wall or Ceiling Mounted with the included Standard Mounting Brackets so you can focus heat in a specific area.

With 3200 watts of heating power, this outdoor/indoor radiant heater can quickly take the chill off any gathering. Best deal here! Buy Today!

What’s Included: DLW Series Heater, Mounting Brackets, and User’s Manual

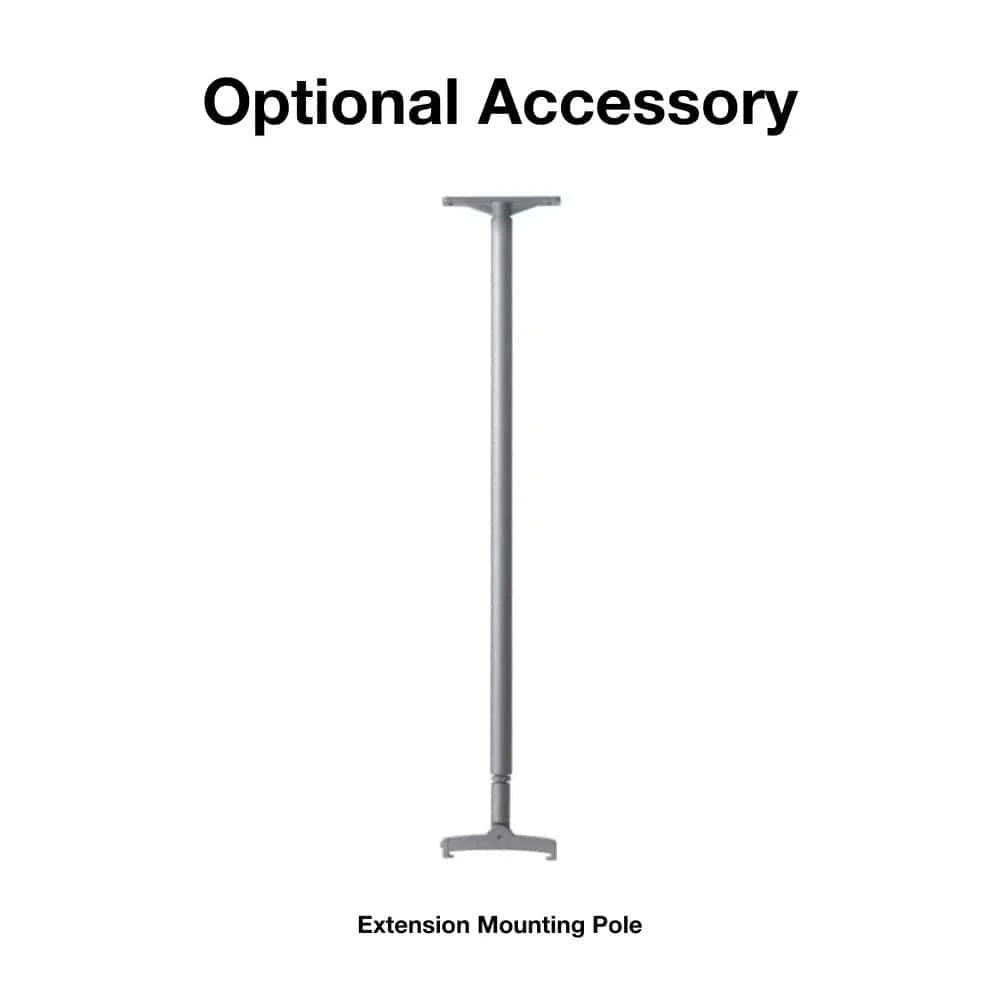

Optional Accessories: Extension Poles

Need help determining the right heater and setup for your space and heating needs? Give us a call at (866) 713-2399 or email us at [email protected] and we’ll be happy to help!

---

Dimplex DLW Series Infrared Electric Heater Videos:

---

FEATURES:

• Dimplex DLW Series Infrared Electric Heater is designed for Indoor/Enclosed Outdoor use
• Wall or Ceiling Mounted and comes with a pair of standard mounting brackets
• IP55 Weatherproof construction can withstand light to moderate rain or sustained low water pressure
• Anodized Aluminum Casing protects against corrosion, enhances aesthetic qualities, resists scratching, and is one of the most durable surface finishes available.
• Designed for permanent hardwired installations on a dedicated circuit.
• Effective radiant heat that warms like the sun, heating people and objects with zero glare
• Fully assembled, simply mount and hardwire using the easy to access top mounted junction box
• The heater must be mounted at least 8 feet above ground level
• The adjustable brackets allow direct ceiling or wall mounting and come with preset angle options of parallel, 22.5 °, or 45°.
• Extension poles for mounting on higher ceilings are sold separately
• Heating Area:
• Indoor: 78 sq. ft.
• Outdoor (Enclosed Area) 60 sq. ft.
• 10,918 BTUs
• 3200 Watts
• 240 V

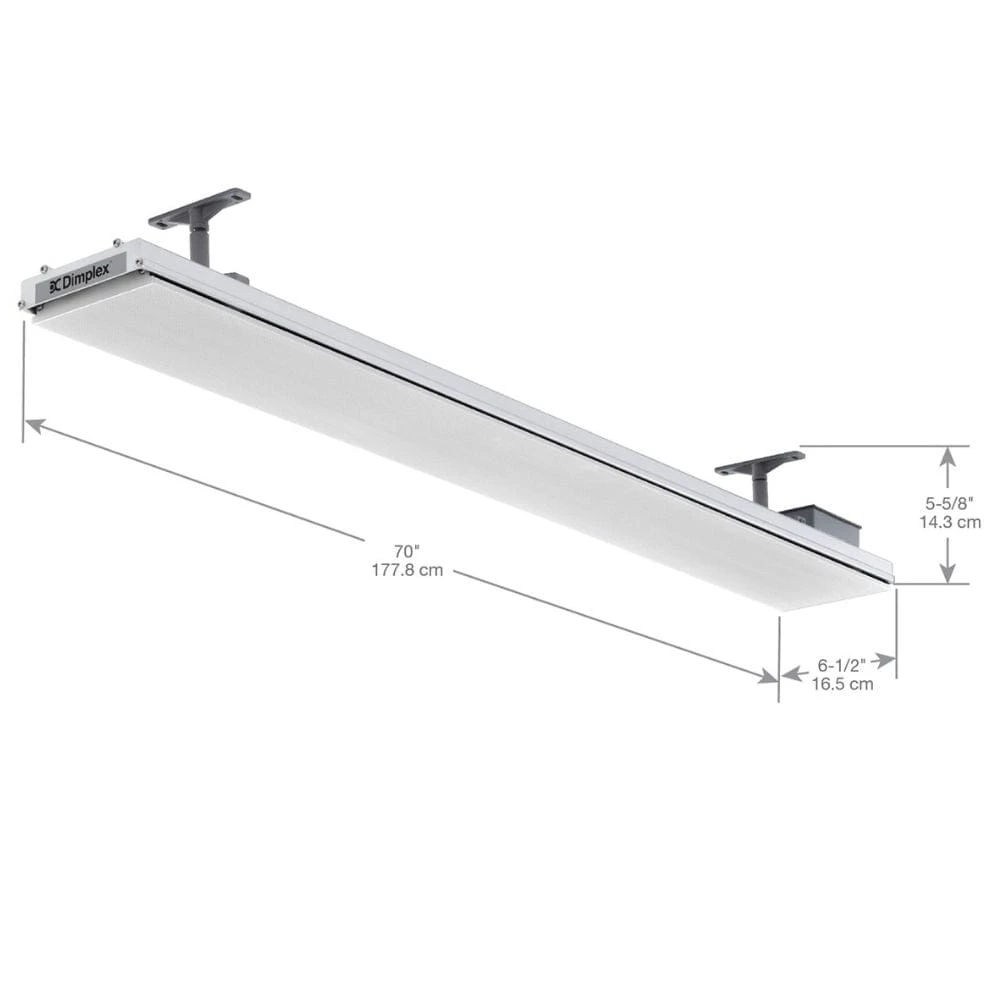

• Dimensions: 2“ H x 70″ L x 6 1/2″ W
• Weight: 22.0 lbs
• 1-Year Limited Warranty

What’s in the Box:

• DLW Heater – 1 pc.
• User’s Manual – 1 pc.
• Mounting Bracket – 2 pc.

---

Downloads:

---

Recommendations:

It is recommended that when the heater is installed outdoors it is positioned where it is protected from extreme weather conditions like rain snow and ice and be installed indoors or in outdoor spaces where there are 1, 2, or 3, enclosed sides.

Installation MUST be carried out by a licensed and authorized technician in accordance with local electrical codes
